OBM-Q Series
Quad-Split Monitor
OBM Q 시리즈는 최대 4 x 3G/HD/SD-SDI 신호의 입력 비디오를 분할하여 표시합니다. 이 시리즈는 다양한 분할 화면 모드를 제공하며, Waveform 모니터, Vector Scope, Time code 디스플레이, UMD, Audio Level Meter 및 기타 전문 기능을 제공합니다.
Quad-Split Monitors (17.3” 24” 32” 42.5")
OBM-U420Q
OBM-U170Q

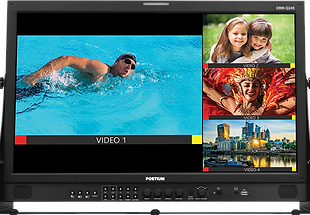

OBM-U240Q
OBM-U320Q
Key Features of Q Series Monitors
· Video Input: 4 x 3G-SDI, 1 x HDMI 2.0
· Video Output: 4 x 3G-SDI
· Audio In: Embedded Audio, Analog Stereo (Phone Jack)
· Audio Out: Analog Stereo (Phone Jack), Internal Speaker(Mono/Stereo)
· 3G-SDI Level A/B Support
· 3D LUT Accurate Color Reproduction
· HDR Support
· Waveform
· Vector Scope
· Various Display Modes
· Adjustable Gamma
· Time Code Display
· Audio Level Meter Display
· UMD
· 1:1 Pixel Mapping
· Blue Only
· H/V Delay
· Various Markers
· Blue/Mono Only
· Various Scan modes
· Freeze Frame
· 3 Color Tally Lamp
· Remote Control via GPI(RJ-45) Port
· Firmware Update via USB Flash Memory
· Rack & VESA Mount(Option)
Layout Select
Press the LAYOUT button to display each screen layout. Four positions are available depending on the situation.
High Dynamic Range(HDR) Display Function
The OBM OBM-Q series provides the function to display the High Dynamic Range footage.
Postium HDR function allows users to view both highlights and shadow detail of scenes at the same time, thus resulting in more natural and realistic images.
The OBM-Q series supports PQ EOTF (SMPTE ST 2084), Hybrid Log Gamma and S-Log3.
HDR Mode
SDR Mode
Adjustable Gamma
control allows for incremental compensation between gamma correction values of 1.0 and 3.0 — thereby ensuring that the decoded image isn’t too bright (no gamma correction) or too dark (over correction).
Gamma 1.8
Gamma 2.4
Focus Assist
The position of Waveform and Vector Scope can be moved between Top Left, Top Right, Bottom Right, and Bottom Left.
Various Frame Markers/Mattes
Various Frame Markers/Mattes are available on the OBM-Q series, including aspect, area, and center markers. In addition, the detailed display settings of each marker are allowed. For example, the color, brightness, horizontal/vertical position, and thickness of aspect markers can all be adjusted.
